Where to Buy Replacement Bowden Tubes & Fittings: Ultimate Guide to PTFE Tubes, Connectors and Top Suppliers for 3D Printers

Introduction

This guide explains why high‑quality Bowden tubes are essential for reliable 3D printing, how to evaluate the many options on the market, and where to purchase the best PTFE tubing and fittings. Readers will learn the technical differences between tube materials, the impact of inner‑diameter tolerances on extrusion accuracy, and practical steps for installing a replacement system. The article also highlights five Amazon products that have received strong user feedback and meet the criteria for durability, temperature resistance and ease of installation.

Background and Context

Bowden extrusion separates the drive gear from the hot‑end by routing filament through a flexible tube. This design reduces moving mass on the print head, allowing higher print speeds and smoother motion. However, the tube must provide a low‑friction path while withstanding the high temperatures generated by the hot‑end. PTFE (polytetrafluoroethylene) is the industry‑standard material because it offers a very low coefficient of friction and can survive temperatures up to 260‑340 °C depending on the formulation.

The inner diameter (ID) of a Bowden tube determines how much filament can flex inside the tube. A larger ID creates more slack, which can cause under‑extrusion and inaccurate retractions. Conversely, an ID that is too small may increase drag, especially with flexible filaments such as TPU. Selecting the correct ID and outer diameter (OD) for a given printer model is therefore a critical step in achieving consistent print quality.

Connectors, often referred to as pneumatic fittings, secure the tube to the extruder and hot‑end. The most common standards are PC4‑M6 for the extruder side and PC4‑M10 for the hot‑end side. These fittings must match the tube OD of 4 mm and provide a tight, leak‑free seal. Poorly machined connectors can introduce gaps that lead to filament leakage, heat creep and clogs.

Because Bowden tubes are consumable components, many users replace them periodically to maintain optimal performance. The following sections break down the decision‑making process and present reliable sources for purchasing replacement parts.

Understanding Bowden Tubes and PTFE Materials

PTFE tubing is available in several grades. Standard white PTFE tubes typically have an ID of 2.1 mm for 1.75 mm filament, which leaves a 0.6 mm clearance for filament flex. Premium Capricorn XS series tubes reduce this clearance to 0.1 mm by offering an ID of 1.9 mm, resulting in more precise filament feeding and reduced oozing. The higher temperature rating of Capricorn tubes (up to 340 °C) also permits the use of high‑temperature filaments such as polycarbonate and nylon.

For users who print primarily with PLA, PETG or TPU, a standard PTFE tube with an ID of 2.5 mm may be sufficient, provided the tube material can withstand the printer’s maximum hot‑end temperature. The Tssinay PTFE Bowden Tube 5m, for example, is rated for 260 °C and offers a low‑friction surface that is suitable for flexible filaments.

When selecting a tube, consider the following attributes:

• Inner diameter (ID) – 1.9 mm for high‑precision feeding, 2.5 mm for general use.
• Outer diameter (OD) – 4 mm is standard for PC4‑M6/M10 connectors.
• Temperature rating – 260 °C for most hobbyist printers, 340 °C for exotic materials.
• Length – longer tubes allow for custom Bowden setups and spare material.

Selecting the Right Diameter and Material

To determine the appropriate tube for a specific printer, consult the manufacturer’s documentation for the recommended ID and maximum hot‑end temperature. For Creality Ender‑3 series printers, many users upgrade from the stock 2.1 mm tube to a 1.9 mm Capricorn tube to reduce filament slack. For Bambu Lab X1 series machines, the OEM tube is typically 2.5 mm ID, making the Bambu Lab PTFE Tube 5m a direct replacement.

When printing flexible filaments, a slightly larger ID can prevent filament binding, but the tube must still maintain a smooth interior. The Tssinay PTFE Bowden Tube 5m provides a 2.5 mm ID that balances flexibility and low friction, making it a popular choice for TPU and TPE users.

For users who require the highest temperature resistance, the Sovol PTFE Bowden Tube Kit includes Capricorn XS tubing rated up to 340 °C, allowing safe extrusion of polycarbonate and nylon without tube degradation.

Finally, budget‑conscious hobbyists may consider the Sovol PTFE Tube Kit 5m, which offers a reliable 2.5 mm ID tube at a lower price point while still providing the essential PC4‑M6/M10 connectors.

Importance of Connectors and Fittings

Connectors must match both the tube OD and the thread specifications of the printer’s extruder and hot‑end. The PC4‑M6 fitting has a 3 mm thread length and a 4 mm inner diameter, while the PC4‑M10 fitting has a 6 mm thread length. High‑quality metal or copper‑plated connectors reduce the risk of loosening under thermal cycling.

The Sovol PTFE Bowden Tube Kit includes two PC4‑M6 and two PC4‑M10 pneumatic fittings made from premium copper and stainless steel, respectively. This combination provides a sturdy, corrosion‑resistant connection for both the extruder and hot‑end.

Similarly, the Hanglife Bowden Tube Kit supplies a pair of each fitting, allowing quick installation without the need for additional hardware.

When installing fittings, it is essential to press the tube firmly into the connector until it reaches the internal stop. A clean, flat cut from the included cutter ensures that the tube seats properly and does not create a gap that could lead to filament leakage.

Where to Purchase Reliable Supplies

Amazon remains the most convenient marketplace for sourcing Bowden tubes and fittings due to its extensive selection, fast shipping and reliable customer service. The following products have been selected based on rating, review volume and feature set that aligns with the guide’s recommendations.

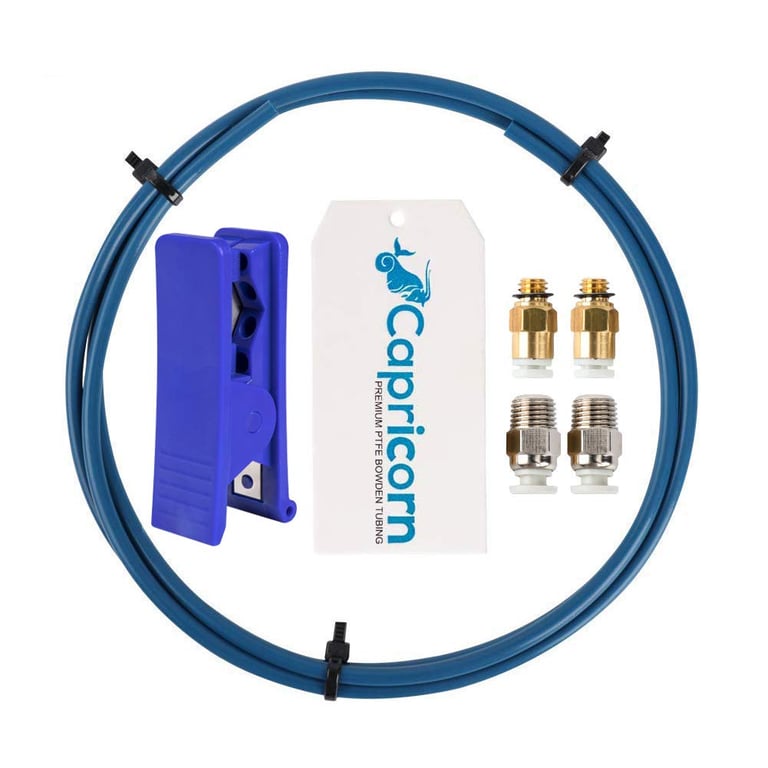

• Sovol PTFE Bowden Tube Kit – Premium Capricorn XS tubing, dual‑size pneumatic fittings, razor‑sharp cutter, 4.7/5 rating from 7,700 reviews, $12.99.

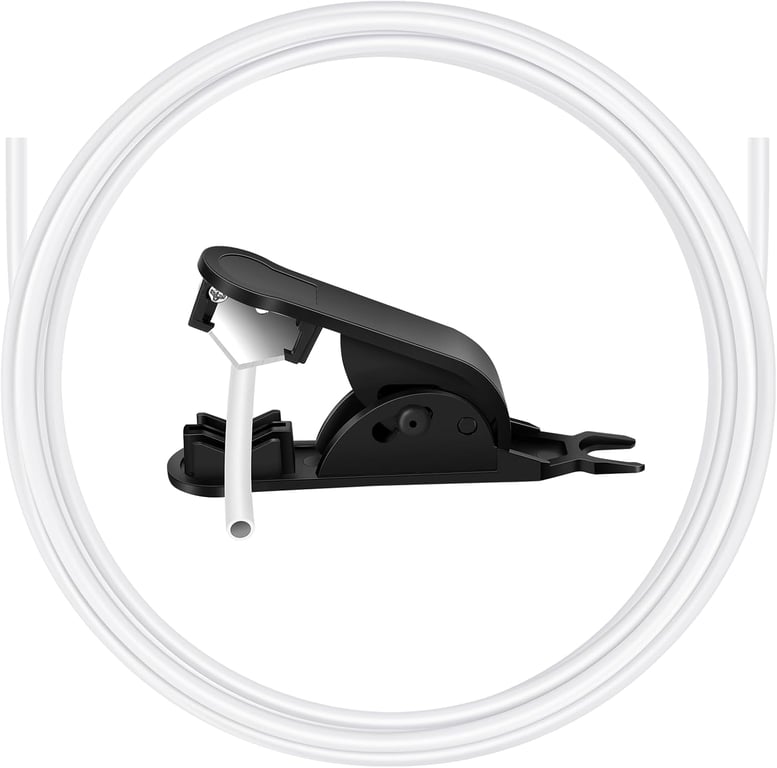

• Tssinay PTFE Bowden Tube 5m – 5 m of 2.5 mm ID tube, heat resistance to 260 °C, includes cutter, 4.8/5 rating from 233 reviews, $5.97.

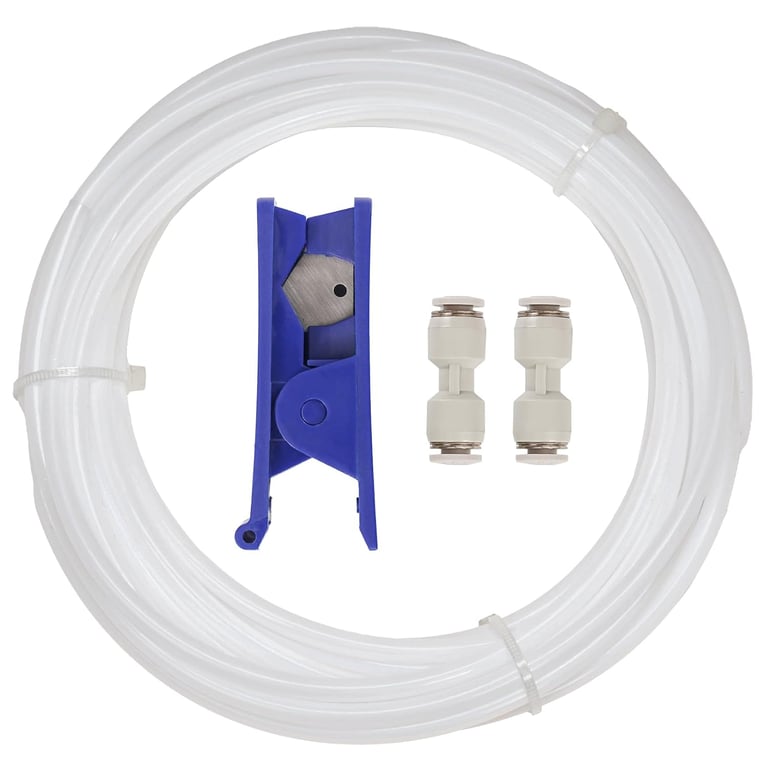

• Sovol PTFE Tube Kit 5m – 5 m of 2.5 mm ID tube, two PC4‑M6/M10 couplers, cutter, 4.7/5 rating, $6.99.

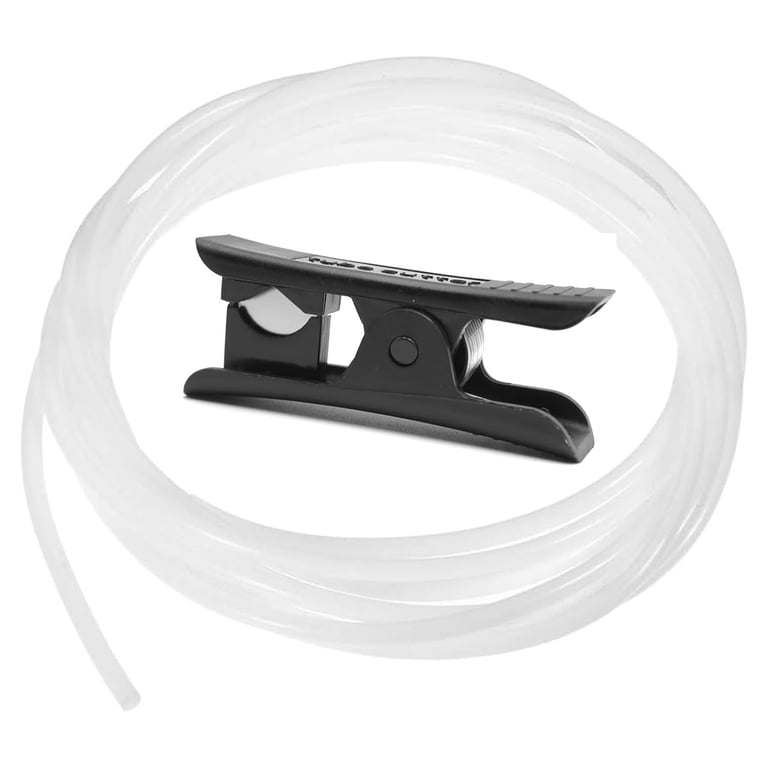

• Bambu Lab PTFE Tube 5m – Cream‑colored 2.5 mm ID tube, high‑temperature resistant, includes cutter, 4.7/5 rating from 506 reviews, $6.99.

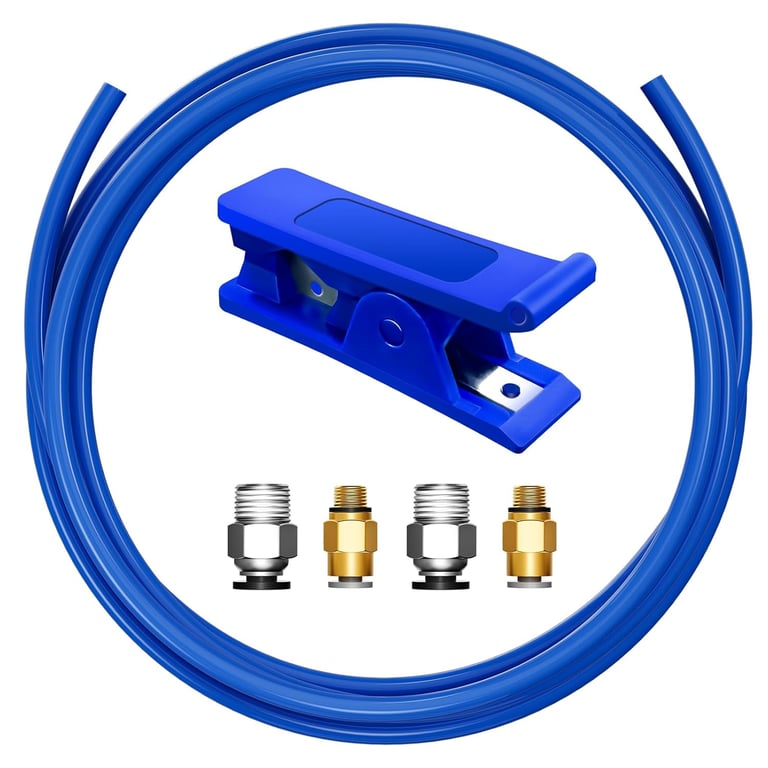

• Hanglife Bowden Tube Kit – 1 m of 2 mm ID tube, full set of PC4‑M6/M10 connectors, cutter, 4.5/5 rating from 334 reviews, $9.99.

Comparison and Selection Guide

Product	Tube ID	Temperature Rating	Length	Connectors Included	Price	Rating
Sovol PTFE Bowden Tube Kit	1.9 mm (Capricorn XS)	Up to 340 °C	1 m	2 × PC4‑M6, 2 × PC4‑M10	$12.99	4.7
Tssinay PTFE Bowden Tube 5m	2.5 mm	260 °C	5 m	None (compatible with standard PC4‑M6/M10)	$5.97	4.8
Sovol PTFE Tube Kit 5m	2.5 mm	260 °C	5 m	2 × PC4‑M6, 2 × PC4‑M10	$6.99	4.7
Bambu Lab PTFE Tube 5m	2.5 mm	260 °C	5 m	None (standard PC4‑M6/M10)	$6.99	4.7
Hanglife Bowden Tube Kit	2 mm	280 °C	1 m	2 × PC4‑M6, 2 × PC4‑M10	$9.99	4.5

When choosing a product, match the tube ID to the printer’s recommended specification, verify the temperature rating for the filaments you intend to use, and consider whether you need additional connectors. Kits that include both tube and fittings simplify installation and reduce the risk of mismatched components.

Best Practices & Tips

1. Measure the existing tube length before removal. Cut the replacement tube with the provided razor cutter to avoid crushing the inner surface.
2. Make a clean, perpendicular cut. A jagged edge can create a gap that allows filament to leak into the hot‑end.
3. Press the tube fully into each connector until it reaches the internal stop. Verify that no play remains.
4. When upgrading to a higher‑temperature tube, ensure that the hot‑end’s thermal barrier can accommodate the increased heat without causing heat creep.
5. Periodically inspect the tube for discoloration or deformation, especially after printing with abrasive filaments such as carbon‑filled PLA.
6. For Bowden systems, keep the tube routing as straight as possible to minimise friction and avoid unnecessary bends.
7. Store spare tubes in a dry, dust‑free environment to preserve their low‑friction surface.

Frequently Asked Questions

1. Do I need a premium Capricorn tube for a Creality Ender‑3?

While the stock tube works for basic PLA prints, many users report improved retraction accuracy and reduced oozing after installing a Capricorn XS tube such as the one included in the Sovol PTFE Bowden Tube Kit. The tighter inner diameter reduces filament slack and enhances print quality, particularly when printing flexible materials.

2. Can I use a 2.5 mm ID tube with a printer that originally shipped with a 1.9 mm tube?

It is possible, but the larger clearance may introduce filament flex that leads to under‑extrusion. If you plan to print primarily with rigid filaments, the impact is minimal; however, for high‑precision prints, a tube with an ID matching the original specification is recommended.

3. What is the difference between PC4‑M6 and PC4‑M10 fittings?

Both fittings have an inner diameter of 4 mm, but PC4‑M6 has a shorter thread length (3 mm) and is typically used on the extruder side, whereas PC4‑M10 has a longer thread length (6 mm) and is used on the hot‑end side. The longer thread provides a more secure seal in the high‑temperature zone.

4. Is the included cutter necessary?

Yes. A dedicated PTFE cutter creates a flat, perpendicular edge that prevents the tube from crushing or developing burrs. Using standard scissors or wire cutters often results in uneven cuts that can cause filament jams.

5. How often should I replace my Bowden tube?

Most users replace the tube after 200‑300 printing hours or when visible wear, discoloration, or deformation occurs. Replacing the tube proactively can prevent unexpected clogs and maintain consistent extrusion.

Conclusion

Replacing Bowden tubes and fittings is a straightforward upgrade that can dramatically improve extrusion accuracy, reduce oozing and extend the usable life of a 3D printer. By understanding the importance of inner‑diameter tolerances, temperature ratings and connector quality, users can make informed decisions that align with their printing goals. The five Amazon products highlighted in this guide provide reliable options for a range of budgets and performance requirements. Implementing the best‑practice tips and regularly inspecting the tube will ensure long‑term reliability and high‑quality prints.

Products Featured in This Guide

Frequently Asked Questions

What factors should I consider when choosing a replacement Bowden tube for my 3D printer?

Look for PTFE material quality, temperature rating, inner‑diameter tolerance, and compatible connector size to ensure low friction and accurate extrusion.

Why is PTFE the preferred material for Bowden tubes?

PTFE offers a very low coefficient of friction and can withstand the high temperatures of hot‑ends without degrading.

Where can I reliably purchase high‑quality Bowden tubes and fittings?

Major online retailers like Amazon, as well as specialized 3D‑printing stores such as MatterHackers, Prusa, and E3D, stock vetted PTFE tubes and compatible connectors.

How does inner‑diameter tolerance affect 3D print quality?

Tighter tolerances keep filament centered, reducing wobble and improving extrusion consistency, which leads to finer detail and fewer print defects.

What are the basic steps to install a replacement Bowden tube?

Remove the old tube, cut the new tube to length, insert it into the drive gear and hot‑end connectors, and secure with set‑screws or clips, then test extrusion before printing.
