Introduction

This guide explains how to choose the optimal stepper motor when upgrading a 3D printer extruder. Readers will learn essential motor parameters, how they interact with drivers, and which STEPPERONLINE models provide the best value. The article balances theory with practical product recommendations, ensuring that both novices and experienced makers can make informed decisions. By the end, one will be able to match a motor to a specific printer architecture with confidence.

Background / Context

Stepper motors convert electrical pulses into precise rotational movement, a principle that underpins most fused deposition modeling (FDM) printers. Unlike DC motors, steppers hold position without feedback, making them ideal for extruder feed mechanisms where consistent torque is critical. However, not all steppers are created equal; variations in holding torque, current rating, and physical dimensions affect print quality and reliability. Understanding these fundamentals is the first step toward a successful upgrade.

Key Concepts for Selecting an Extruder Stepper

Holding Torque and Extruder Load

Holding torque, measured in Ncm or oz‑in, indicates the motor’s ability to resist external forces when powered. An extruder typically experiences forces from filament drag, back‑pressure, and occasional jams. For standard 1.75 mm filament, a torque of 40‑50 Ncm is sufficient, while high‑viscosity materials benefit from 55 Ncm or more.

Among the STEPPERONLINE offerings, the StepperOnline Nema 17 2A Motor delivers 59 Ncm, providing a generous safety margin for demanding filaments. The StepperOnline Nema 17 1.5A Motor offers 42 Ncm, which is adequate for most hobby‑grade printers.

Current Rating and Driver Compatibility

The rated current per phase determines how much power the motor draws and influences driver heating. A motor rated at 2.0 A, such as the 2A Nema 17, works well with modern TMC2209 or TMC2130 drivers that can supply up to 1.5 A continuous with headroom. The 1.5 A models pair comfortably with drivers like the A4988 or DRV8825, which often operate at 1.0‑1.2 A without excessive heat.

When selecting a driver, ensure it supports constant‑current mode; otherwise, the motor may overheat or lose steps. The 2A motor’s resistance of 1.4 Ω yields a lower voltage drop than the 2.3 Ω of the 1.5A versions, which can affect efficiency at higher supply voltages.

Physical Size and Mounting Considerations

All Nema 17 motors share a 42 mm square face, but body length varies. The 2A motor has a 48 mm body length, requiring a slightly deeper extruder housing compared to the 38 mm length of the 1.5A variants. Verify that the printer’s extruder carriage can accommodate the motor’s depth before purchase.

For larger machines that demand higher torque, the StepperOnline Nema 23 2.4Nm Motor provides a 2.4 Nm (339 oz‑in) holding torque, but its 57 mm frame and 82 mm length necessitate a redesign of the mount and a more robust driver capable of 4 A.

Noise, Microstepping, and Print Quality

Stepper noise is primarily a function of coil inductance and driver microstepping settings. Motors with lower inductance, such as the 2A Nema 17 (inductance not specified but typically around 3‑4 mH), respond faster to high‑frequency driver pulses, reducing audible whine. Implementing 16× or 32× microstepping smooths extrusion, especially when paired with a low‑noise driver.

All featured STEPPERONLINE motors support standard 1.8° step angles (200 steps per revolution), enabling fine granularity when combined with microstepping. The 3‑Pack and 5‑Pack options provide cost‑effective redundancy for multi‑extruder setups.

Product Recommendations Integrated with Theory

High‑Torque Upgrade for Heavy‑Filament Extruders

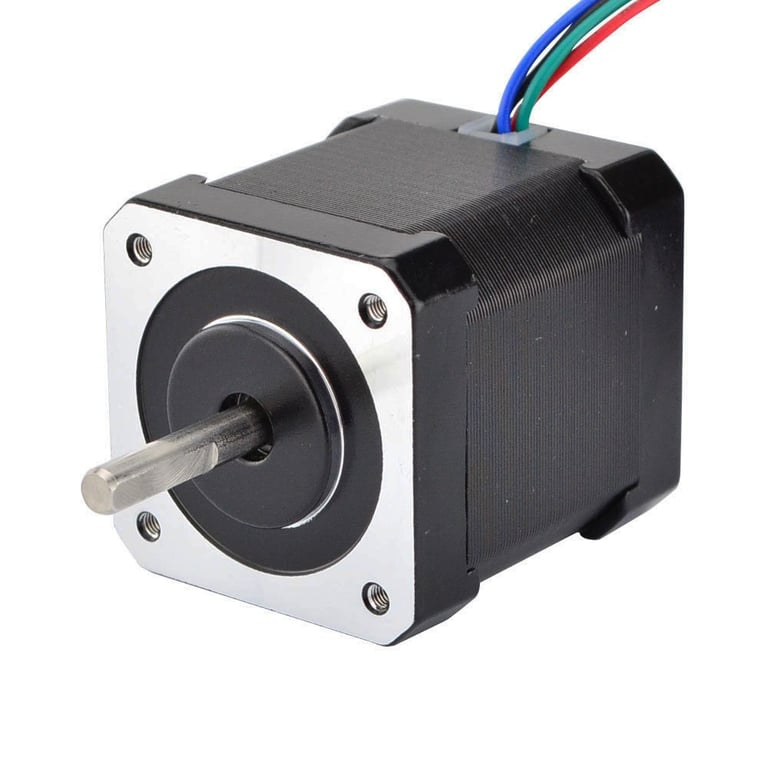

The StepperOnline Nema 17 2A Motor stands out for printers that require extra push force, such as those using TPU or carbon‑filled filaments. Its 59 Ncm torque, 2 A current rating, and 1 m cable with a secure connector simplify installation. Positive user sentiment highlights robust packaging, clear wiring diagrams, and reliable performance at 1.5 A, leaving ample headroom for driver tuning.

Budget‑Friendly Choice for Standard Prints

The StepperOnline Nema 17 1.5A Motor offers a balance of cost and capability. At $10.99, it provides 42 Ncm torque, sufficient for most PLA and PETG prints. Reviewers praise its quiet operation and smooth motion, noting that the included 1 m cable can be re‑terminated to match existing connectors.

Multi‑Extruder or Redundancy Solution

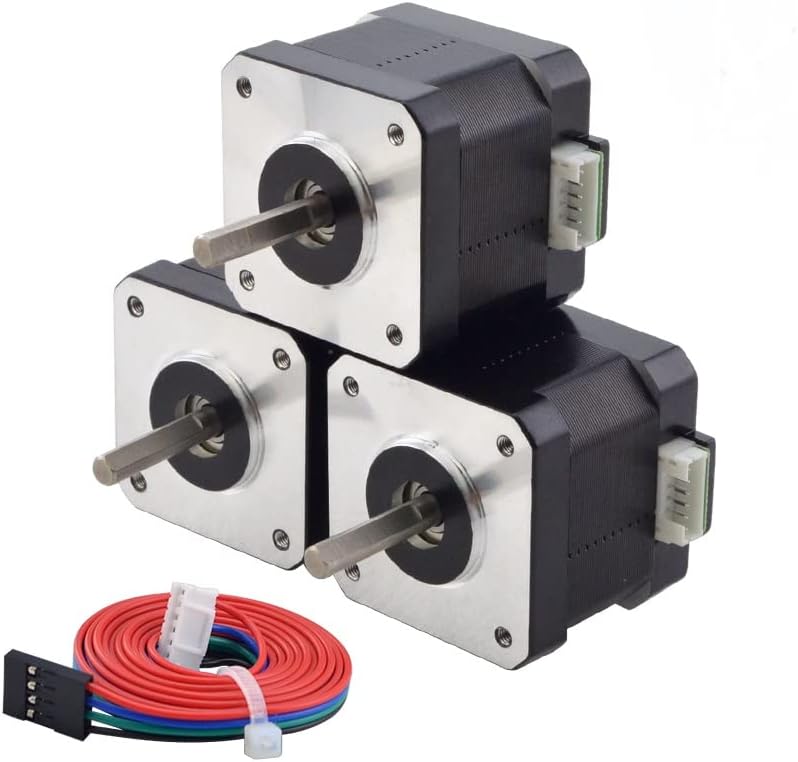

For users planning dual‑extruder upgrades, the StepperOnline Nema 17 3‑Pack Motor supplies three identical units at a discounted bundle price of $25.99. This ensures identical torque and electrical characteristics across both extruders, simplifying firmware calibration.

High‑Power Option for CNC‑Style Extruders

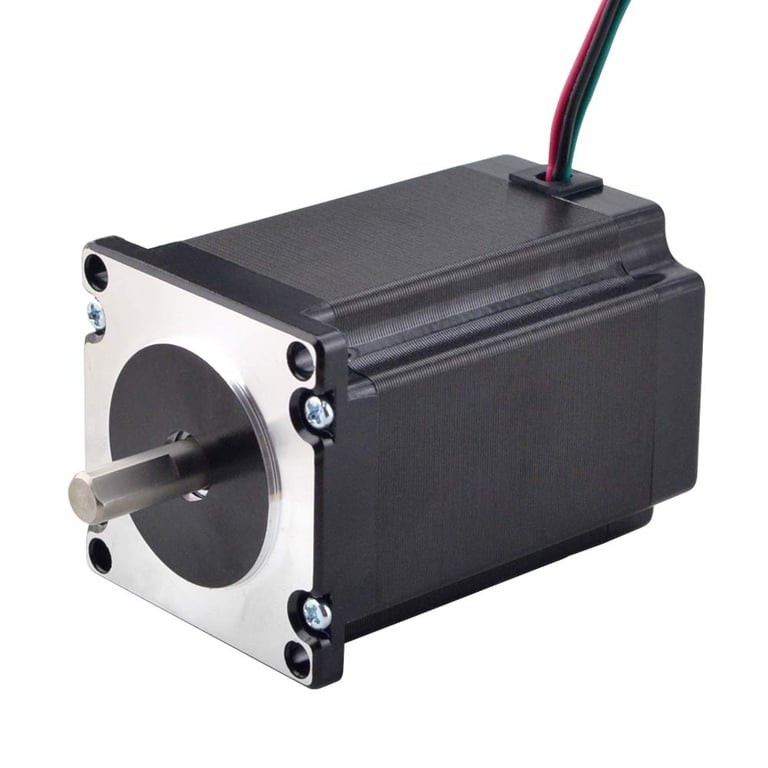

When the extruder is part of a larger CNC‑type system, the StepperOnline Nema 23 2.4Nm Motor delivers the necessary holding torque. Its 4 A rating and 0.65 Ω resistance require a driver such as the DM542 or a dedicated 4 A stepper driver board. Users have reported flawless operation in high‑speed, high‑load scenarios.

Maximum Torque Pack for Heavy‑Duty Applications

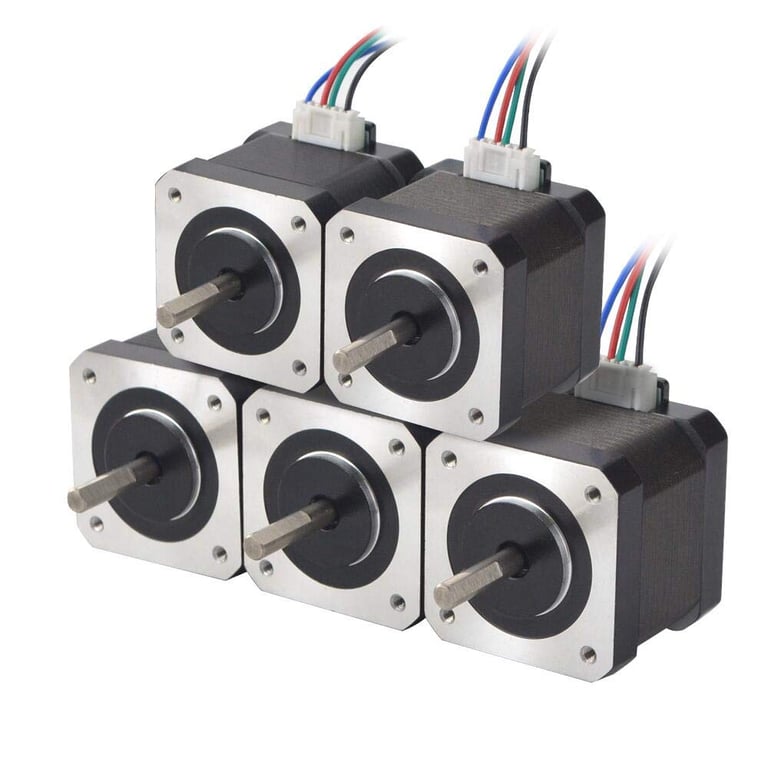

The StepperOnline Nema 17 5‑Pack Motor provides five 45 Ncm motors, ideal for printers that demand extra torque on multiple axes or for experimental setups. At $48.00, the per‑unit cost is competitive, and the included 1 m pin connector facilitates rapid wiring.

Comparison / Selection Guide

Feature	2A Nema 17	1.5A Nema 17	3‑Pack Nema 17	5‑Pack Nema 17	Nema 23 2.4Nm
Holding Torque	59 Ncm	42 Ncm	42 Ncm	45 Ncm	2.4 Nm (339 oz‑in)
Rated Current	2.0 A	1.5 A	1.5 A	1.5 A	4.0 A
Resistance	1.4 Ω	2.3 Ω	2.3 Ω	2.3 Ω	0.65 Ω
Body Length	48 mm	38 mm	38 mm	38 mm	82 mm
Price (USD)	14.99	10.99	25.99 (3‑pack)	48.00 (5‑pack)	25.99
Rating	4.7/5 (1,153 reviews)	4.5/5 (646 reviews)	4.5/5 (646 reviews)	4.6/5 (319 reviews)	4.7/5 (170 reviews)

Choose the 2A motor if maximum torque and headroom for driver tuning are priorities. Opt for the 1.5A motor or its multi‑pack variants when budget constraints dominate or when the printer already uses a modest driver. The Nema 23 should only be considered for machines that can accommodate its size and have a driver capable of 4 A.

Best Practices & Tips

• Always verify that the stepper driver is set to the motor’s rated current; excessive current shortens motor life.
• Use a high‑quality connector and consider adding heat‑shrink tubing at the wire entry point for strain relief.
• When upgrading to a higher‑torque motor, re‑calibrate the extruder steps‑per‑mm in firmware to avoid over‑extrusion.
• Implement 16× or 32× microstepping to reduce audible noise and achieve smoother filament flow.
• Maintain proper cooling on both the driver (heat sink or fan) and the motor, especially for continuous high‑current operation.

FAQ

What is the minimum torque required for a 3D printer extruder?

For standard 1.75 mm filament, a holding torque of at least 35‑40 Ncm is sufficient. Higher‑temperature or composite filaments benefit from 45 Ncm or more.

Can I use a Nema 23 motor in a printer designed for Nema 17?

Physically, the Nema 23 is larger and will not fit most extruder housings without modification. Additionally, it requires a driver capable of 4 A, which most hobby‑grade printers lack.

Do I need to change the power supply when upgrading to a higher‑current motor?

Only if the existing supply cannot deliver the additional current demanded by the driver. Most 12‑24 V supplies for hobby printers can handle the extra 0.5‑1 A per motor.

Is microstepping necessary for an extruder motor?

Microstepping improves smoothness and reduces resonance, leading to more consistent extrusion. While not strictly required, 16× or 32× microstepping is recommended for quality prints.

How do I determine the correct wiring order?

Refer to the motor’s datasheet; the included color‑coded wire chart matches the standard A+, A‑, B+, B‑ convention. The 2A Nema 17 motor’s datasheet provides a clear diagram that simplifies hookup.

Conclusion

Selecting the right stepper motor for an extruder upgrade involves balancing torque, current rating, physical dimensions, and driver compatibility. The STEPPERONLINE catalog offers a range of options, from the high‑torque 2A Nema 17 to the ultra‑robust Nema 23, each supported by positive user feedback. By applying the criteria outlined in this guide, readers can choose a motor that enhances print speed, reliability, and filament handling without unnecessary expense.

Products Featured in This Guide

Frequently Asked Questions

What is holding torque and why does it matter for a 3D printer extruder?

Holding torque is the motor’s ability to maintain position under load; higher torque ensures consistent filament feeding and reduces skipping.

How do I match a stepper motor’s current rating with my printer’s driver?

Select a motor whose rated current does not exceed the driver’s maximum current setting, and adjust the driver’s Vref to the motor’s rated current.

What physical dimensions should I check when upgrading an extruder stepper?

Verify the motor’s length, mounting hole pattern (usually 31 mm), and shaft diameter to fit the existing extruder mount.

Are NEMA 17 stepper motors suitable for most FDM printer extruders?

Yes, NEMA 17 motors are the standard size offering a good balance of torque and size for most desktop FDM printers.

Which STEPPERONLINE models provide the best value for extruder upgrades?

STEPPERONLINE’s 42BYGHW609 (1.68 A, 45 N·cm) and 42BYGHW608 (1.5 A, 40 N·cm) are popular, cost‑effective choices for reliable extrusion.
