The Ultimate Nozzle Size Guide for Fast Functional Parts: Optimize 3D Printing Speed, Strength & Surface Finish

Introduction

Choosing the correct nozzle size is one of the most influential decisions when printing functional parts that must be both fast and strong. This guide explains how nozzle diameter, material, and supporting tools affect print speed, mechanical strength, and surface finish. Readers will learn the theory behind nozzle selection, compare popular nozzle kits, and receive actionable best‑practice tips. By the end, one will be equipped to select the optimal nozzle for any functional prototype.

Background/Context

Fused deposition modeling (FDM) builds objects by extruding molten filament through a small aperture. The aperture diameter determines the layer width, extrusion volume, and cooling rate. Larger diameters increase material flow, reducing print time, but they also increase the minimum feature size and can affect surface smoothness. Conversely, smaller diameters enable finer detail and smoother surfaces at the cost of longer print times.

Material choice for the nozzle itself also matters. Brass offers excellent thermal conductivity but wears quickly when printing abrasive filaments. Hardened steel and stainless steel resist wear, allowing higher temperatures and longer life. Understanding these trade‑offs is essential for functional parts that require strength, dimensional accuracy, and rapid turnaround.

Choosing the Right Nozzle Diameter

The most common diameters are 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm, and 1.0 mm. A 0.2 mm nozzle excels at intricate geometry and smooth surface finish, but it prints roughly three times slower than a 0.6 mm nozzle. For functional parts where strength and speed dominate, a 0.6 mm or 0.8 mm nozzle often provides the best balance. When printing large, low‑detail structural components, a 1.0 mm nozzle can cut print time by up to 50 % while still delivering acceptable layer adhesion.

Key considerations when selecting a diameter include:

• Desired layer height: typically 25‑75 % of nozzle size.
• Filament type: abrasive filaments such as carbon‑filled PLA benefit from hardened steel nozzles.
• Print speed targets: larger diameters enable higher flow rates without over‑extrusion.
• Part geometry: fine features require smaller apertures.

For most hobbyist and small‑business users, maintaining a mixed set of nozzles allows quick adaptation to varying design requirements.

Material Considerations for Nozzles

Brass nozzles, such as those in the XIFOWE MK8 Nozzle Set, provide superior heat transfer, resulting in consistent extrusion temperature. Their premium brass construction reduces oxidation at high temperatures, which is reflected in a 4.7/5 rating from 677 reviews. However, brass wears quickly when printing composites containing carbon or metal powders.

Hardened steel nozzles, like the Creality Hardened Steel Nozzle Set, resist abrasion and sustain temperatures up to 450 °C. This enables printing of high‑temperature polymers such as polycarbonate and PEEK, while maintaining structural integrity. The set is priced at $9.99 and carries a 4.6/5 rating from 333 reviewers.

Stainless steel and hardened steel hybrids, found in the Axeyil 50‑Piece Nozzle Assortment, combine corrosion resistance with wear resistance. The assortment includes brass, stainless, and hardened steel options, offering flexibility for mixed‑material workflows. At $17.99, it provides a broad toolkit for advanced users.

When printing high‑temperature or abrasive filaments, selecting a hardened steel or stainless steel nozzle is advisable. For standard PLA or ABS prints, brass remains a cost‑effective choice.

Product Recommendations by Use Case

General Purpose & Budget‑Friendly

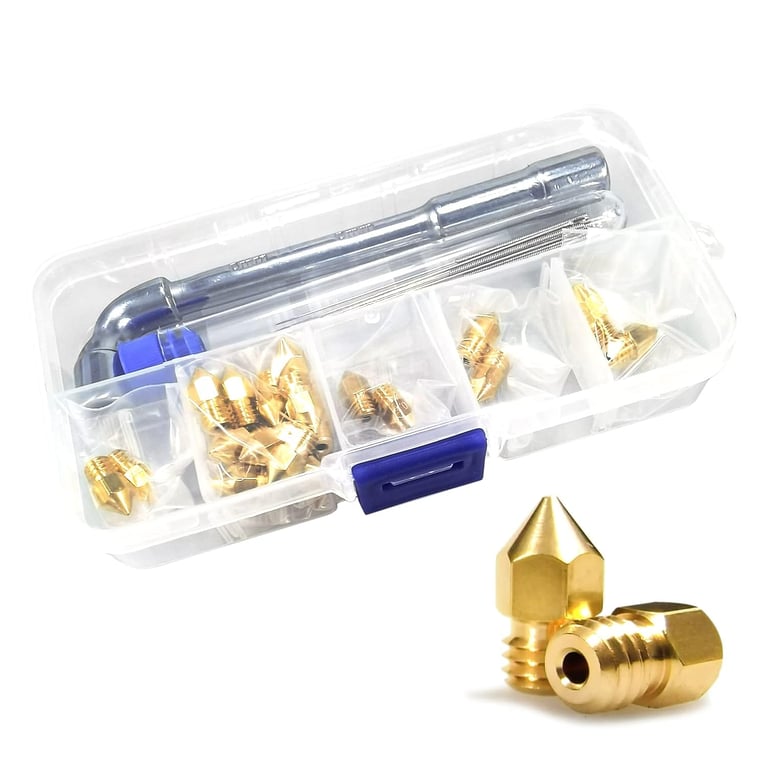

The XIFOWE MK8 Nozzle Set offers 24 brass nozzles ranging from 0.2 mm to 1.0 mm, a storage box, stainless steel cleaning needles, and a hex wrench. Users praise its durability, precise dimensions, and the value of receiving multiple sizes in a single package. Its 4.7/5 rating and $9.99 price make it an excellent entry point.

High‑Volume Production & Tooling

The Comgrow MK8 Nozzle Kit supplies 25 brass nozzles, cleaning tools, and a sturdy case for $9.99. Reviewers highlight the inclusion of a robust hex wrench and the consistency of 0.4 mm nozzles for rapid prototyping. Its 4.7/5 rating from 1,720 reviews confirms reliability for frequent swaps.

Advanced Materials & Wear‑Resistant Needs

The Creality Hardened Steel Nozzle Set provides five hardened steel sizes (0.2 mm–1.0 mm) plus cleaning tools for $9.99. Users report successful printing of carbon‑filled PLA and nylon without premature wear. Its high temperature tolerance (up to 450 °C) expands material options for functional parts.

Comprehensive Toolkit for Mixed Workflows

The Axeyil 50‑Piece Nozzle Assortment includes brass, stainless, and hardened steel nozzles, cleaning needles, tweezers, and multiple wrenches. At $17.99, it equips users to handle PLA, ABS, PETG, and abrasive composites without purchasing separate kits. Its 4.6/5 rating reflects strong satisfaction among versatile makers.

Printer‑Specific High‑Performance Option

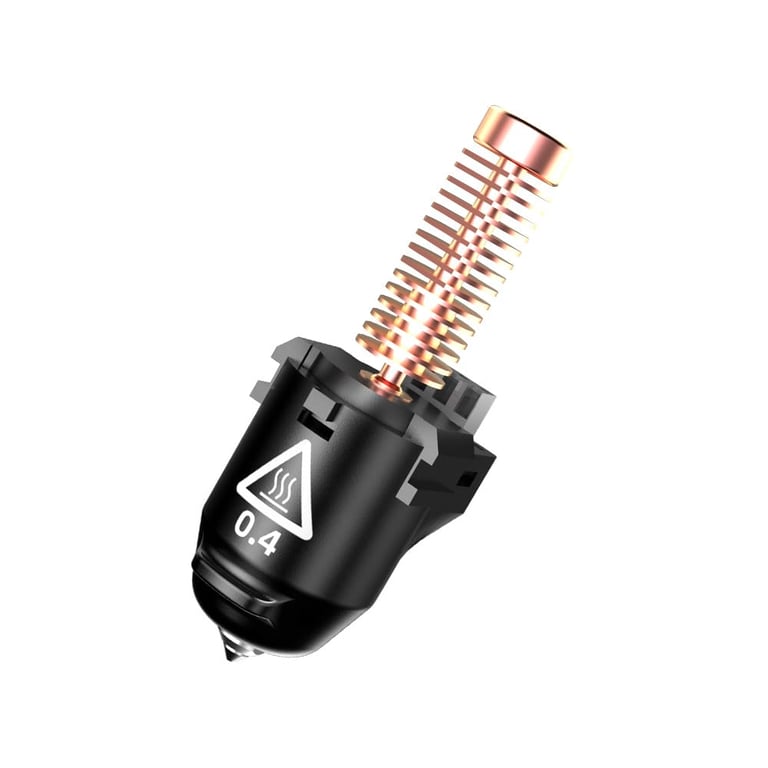

The Flashforge Adventurer 5M Nozzle is a 0.4 mm quick‑detach nozzle designed for the Adventurer 5M series. Rated 4.4/5 from 284 reviews, it offers a max temperature of 280 °C and a high flow rate of 32 mm³/s, ideal for rapid printing on that specific platform. Priced at $35.00, it targets users who need a dedicated, high‑flow solution.

Comparison/Selection Guide

Feature	XIFOWE MK8 Set	Comgrow MK8 Kit	Creality Hardened Steel	Axeyil 50‑Piece Assortment	Flashforge Adventurer 5M
Material	Premium Brass	Premium Brass	Hardened Steel (HRC > 60)	Brass, Stainless, Hardened Steel	Brass (Quick‑Detach)
Diameter Range	0.2–1.0 mm (24 pcs)	0.4 mm (25 pcs) + tools	0.2–1.0 mm (8 pcs)	0.1–1.0 mm (45 pcs) + extras	0.4 mm (single)
Max Temperature	~260 °C	~260 °C	450 °C	~260 °C (brass), higher for steel	280 °C
Price (USD)	9.99	9.99	9.99	17.99	35.00
Rating	4.7/5 (677)	4.7/5 (1,720)	4.6/5 (333)	4.6/5 (157)	4.4/5 (284)
Best For	All‑round starter kit	High‑volume brass swaps	Abrasive & high‑temp prints	Mixed‑material, tool‑heavy workflows	Flashforge Adventurer 5M users

The table highlights that price does not always correlate with capability; hardened steel nozzles cost the same as brass kits but unlock high‑temperature polymers. Users should match material durability with their filament portfolio.

Best Practices & Tips

• Always calibrate the extruder after changing nozzle size; a 0.2 mm nozzle typically requires a lower flow multiplier than a 0.8 mm nozzle.
• Use the supplied cleaning needles (e.g., stainless steel needles in the XIFOWE kit) while the nozzle is hot to remove residual filament.
• When printing with hardened steel nozzles, increase the retraction distance slightly to compensate for the smoother inner wall.
• Store nozzles in a dry box or the provided storage case to prevent oxidation, especially for brass variants.
• For large functional parts, consider increasing layer height to 0.6 mm when using a 0.8 mm nozzle; this reduces print time without sacrificing strength.

Adhering to these practices maximizes the benefits of each nozzle type and prolongs the lifespan of the hardware.

FAQ

Q1: Does a larger nozzle reduce part strength?

A1: Larger nozzles produce thicker layers, which can increase inter‑layer adhesion and overall part strength, provided the print temperature is adequate.

Q2: Can I mix brass and hardened steel nozzles on the same printer?

A2: Yes, as long as the hotend can accommodate the different thermal expansion rates; always verify that the nozzle seat is compatible.

Q3: How often should I replace a brass nozzle when printing carbon‑filled PLA?

A3: Expect wear after 30–50 hours of continuous printing; monitor for increased extrusion pressure or surface roughness.

Q4: Is the Flashforge Adventurer 5M nozzle compatible with other printer models?

A4: The quick‑detach design is specific to the Adventurer 5M series; using it on other printers may require adapter modifications.

Q5: What is the advantage of a 0.1 mm nozzle?

A5: A 0.1 mm nozzle enables ultra‑fine detail and exceptionally smooth surfaces, but print speed drops dramatically and clog risk rises.

Q6: Do I need a separate wrench for each nozzle set?

A6: Most kits, such as the XIFOWE and Comgrow sets, include a 6 mm hex wrench that fits all included sizes.

Q7: How does nozzle temperature affect surface finish?

A7: Higher temperatures improve layer bonding but can cause stringing; optimal temperature balances flow and cooling for the chosen filament.

Conclusion

Optimizing nozzle size, material, and supporting tools empowers makers to produce functional parts that are both fast and robust. By understanding the trade‑offs between 0.2 mm precision and 1.0 mm speed, selecting the appropriate nozzle material, and employing best‑practice maintenance, one can achieve superior surface finish without sacrificing strength. The product recommendations presented address a spectrum of budgets and material needs, ensuring that every user can find a suitable solution.

Implement the guidelines, experiment with the suggested kits, and refine settings based on real‑world results. The right nozzle choice will become an integral part of a streamlined, high‑performance 3D printing workflow.

Products Featured in This Guide

Frequently Asked Questions

How does nozzle diameter affect 3D print speed?

Larger diameters increase material flow, allowing thicker layers and faster prints, while smaller diameters slow the process due to finer extrusion.

What trade‑offs exist between nozzle size and part strength?

Big nozzles produce stronger, bulkier walls because of higher extrusion volume, but may reduce fine detail; small nozzles can create thinner walls that are less robust.

Can I use a standard brass nozzle for high‑temperature materials?

Brass tolerates up to ~260 °C, so for materials like polycarbonate or nylon you should switch to hardened steel or ruby‑tipped nozzles.

How does nozzle size influence surface finish?

Smaller nozzles lay down finer lines, yielding smoother surfaces, whereas larger nozzles often leave visible layer lines that may need post‑processing.

What are best‑practice tips for switching nozzle sizes?

Calibrate extrusion multiplier, adjust layer height to 25‑75 % of the new nozzle diameter, and re‑level the bed before printing.
